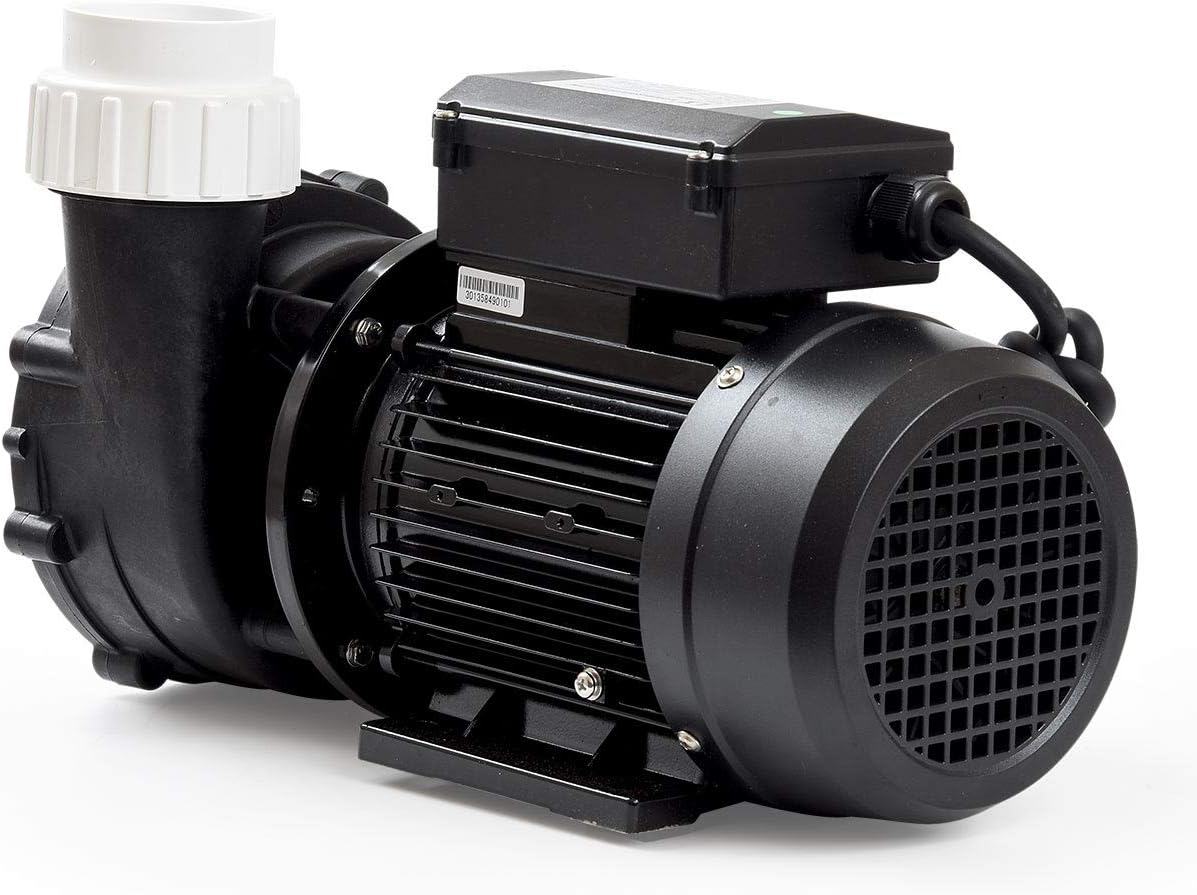

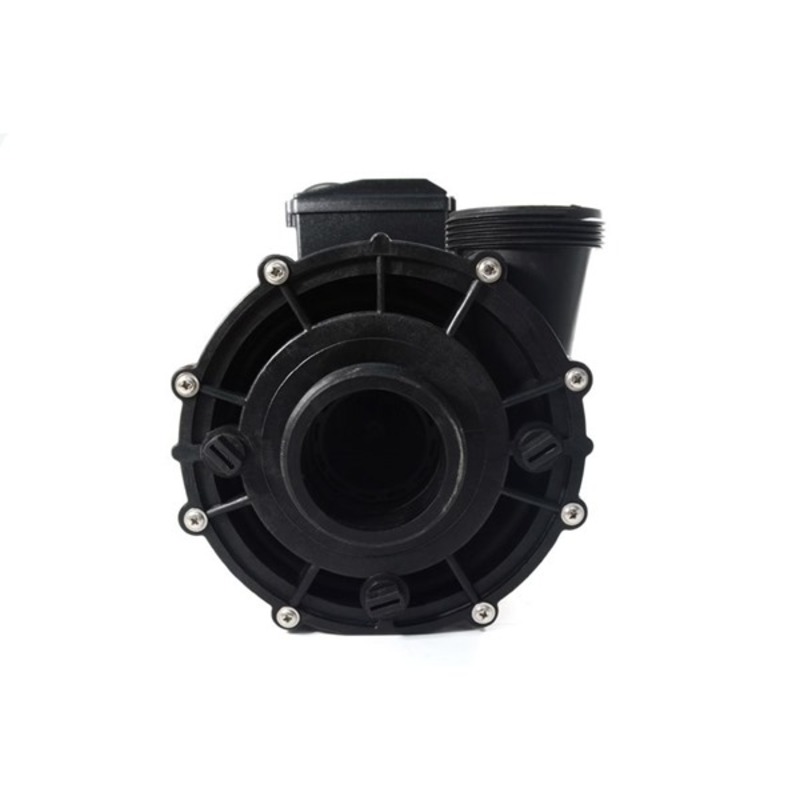

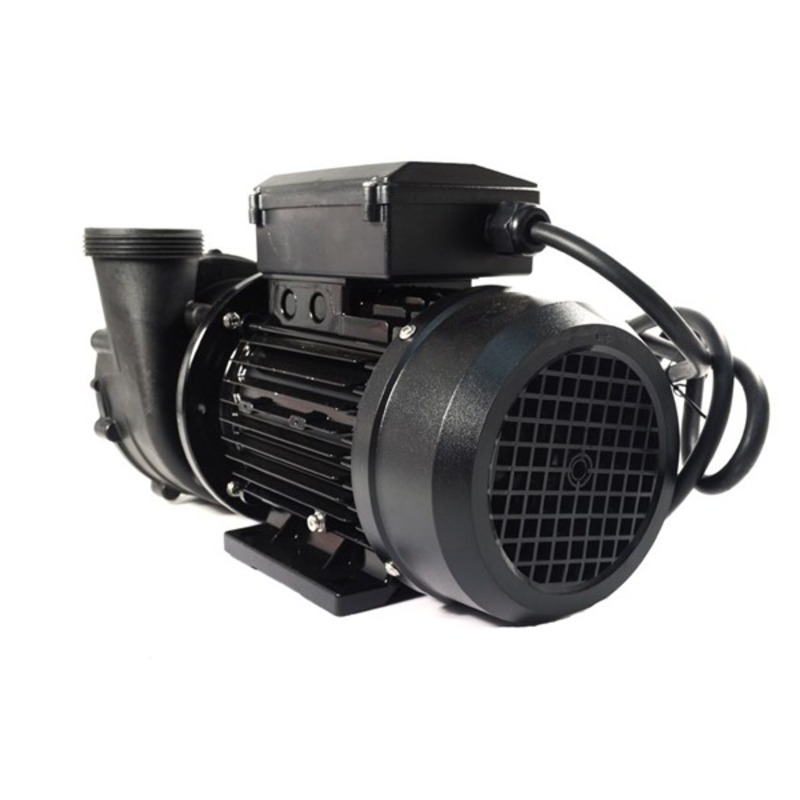

LP150
Mariculture circulation filter
Recirculation of water in Bathtub pump
Recirculation of water in SPA equipment
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA

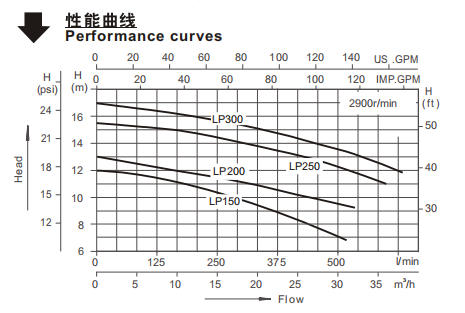

| Model | Qmax (l/min) | Hmax (m) | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| LP150 | 520 | 12 | 220-240/50 | 1.1 | 1.5 | 5.8 | 60.3 or 63 |
| LP200 | 535 | 13 | 220-240/50 | 1.5 | 2 | 7 | 60.3 or 63 |
| LP250 | 600 | 15.5 | 220-240/50 | 1.85 | 2.5 | 8 | 60.3 or 63 |
| LP300 | 635 | 17 | 220-240/50 | 2.2 | 3 | 10 | 60.3 or 63 |
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | |||||||

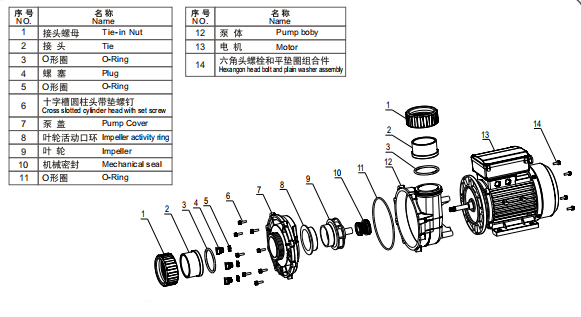

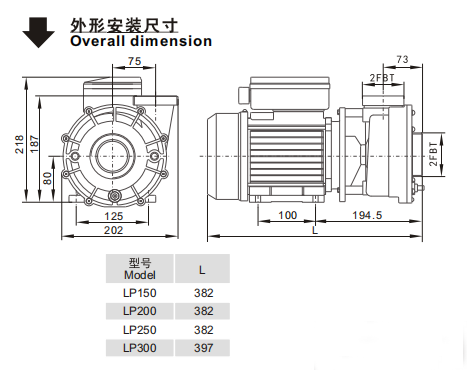

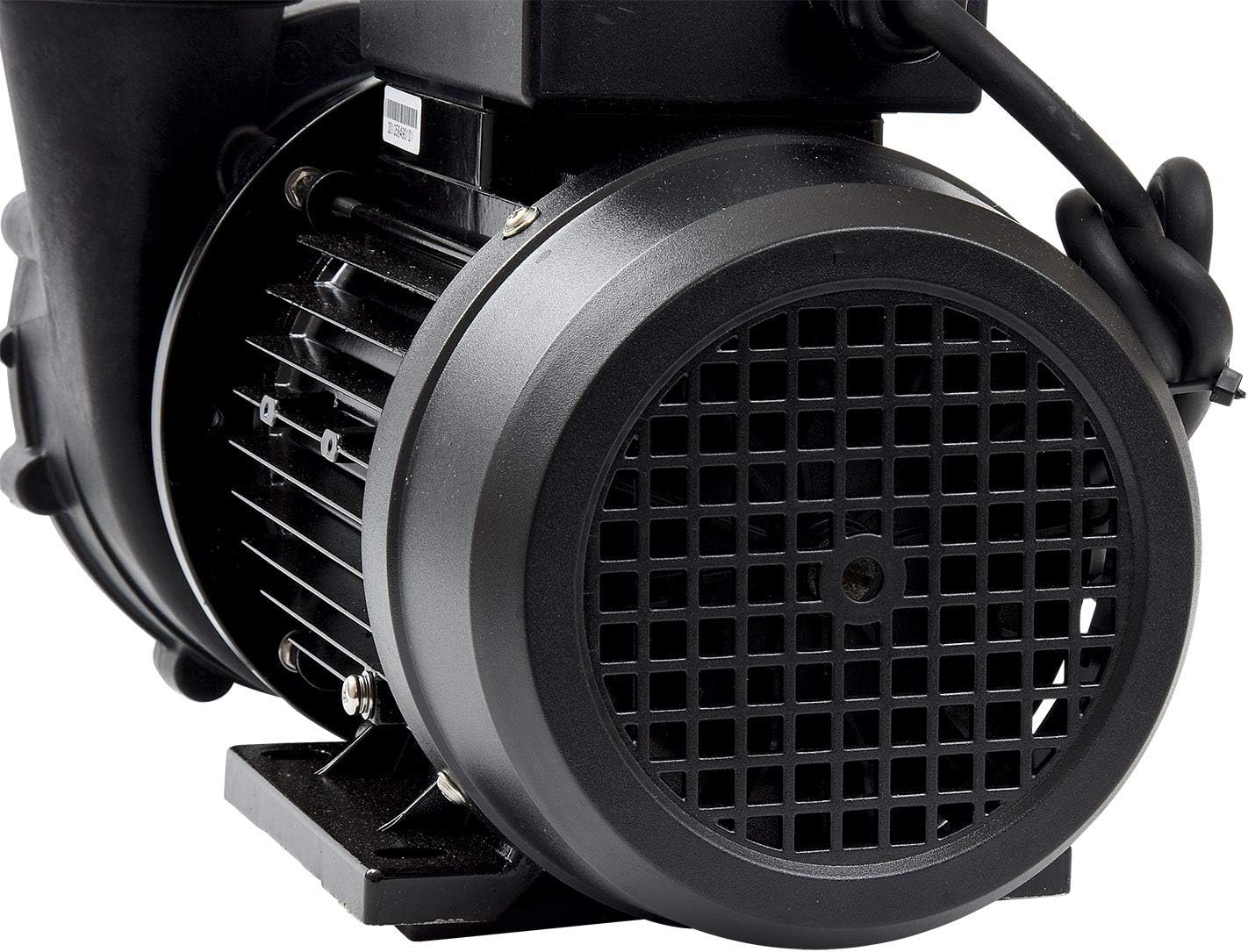

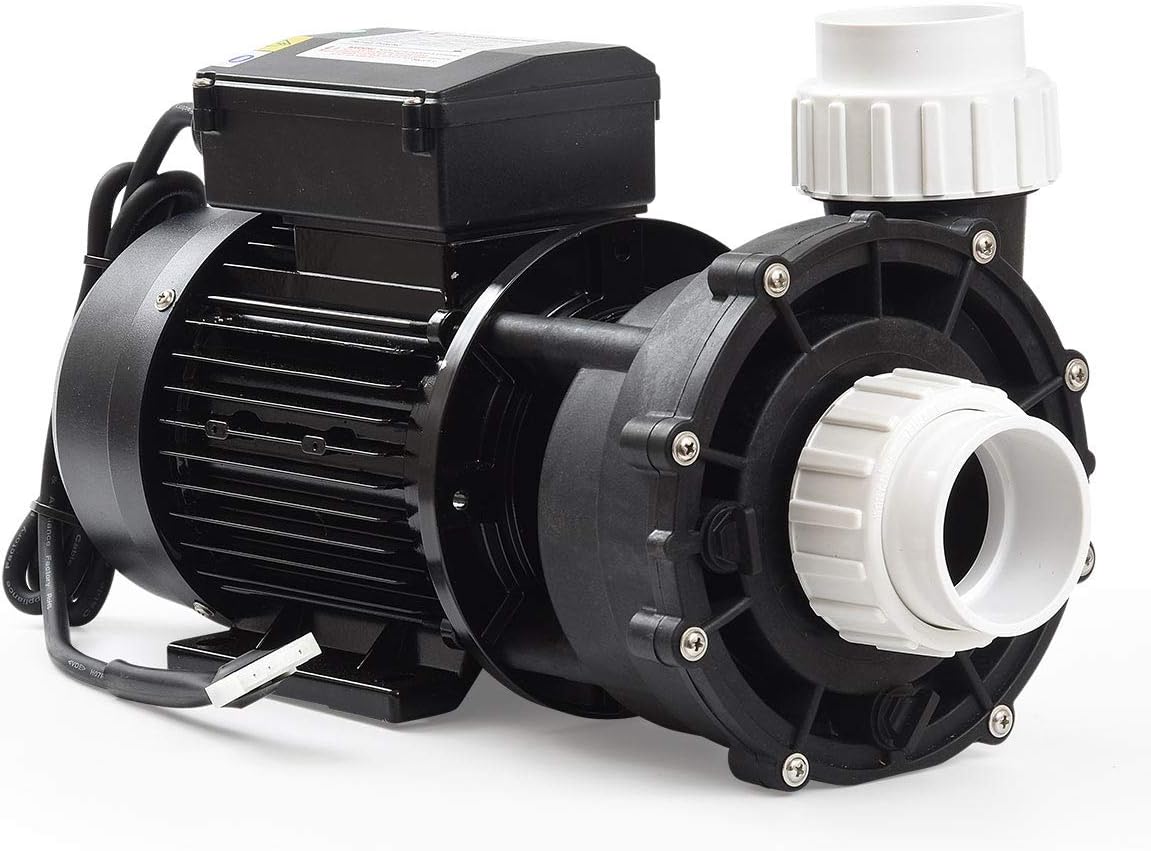

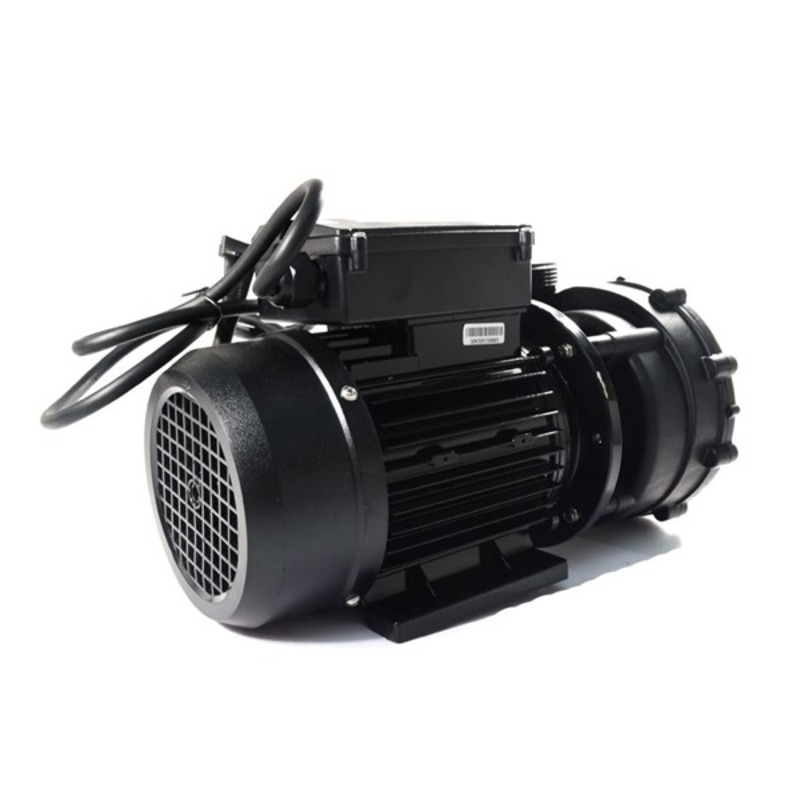

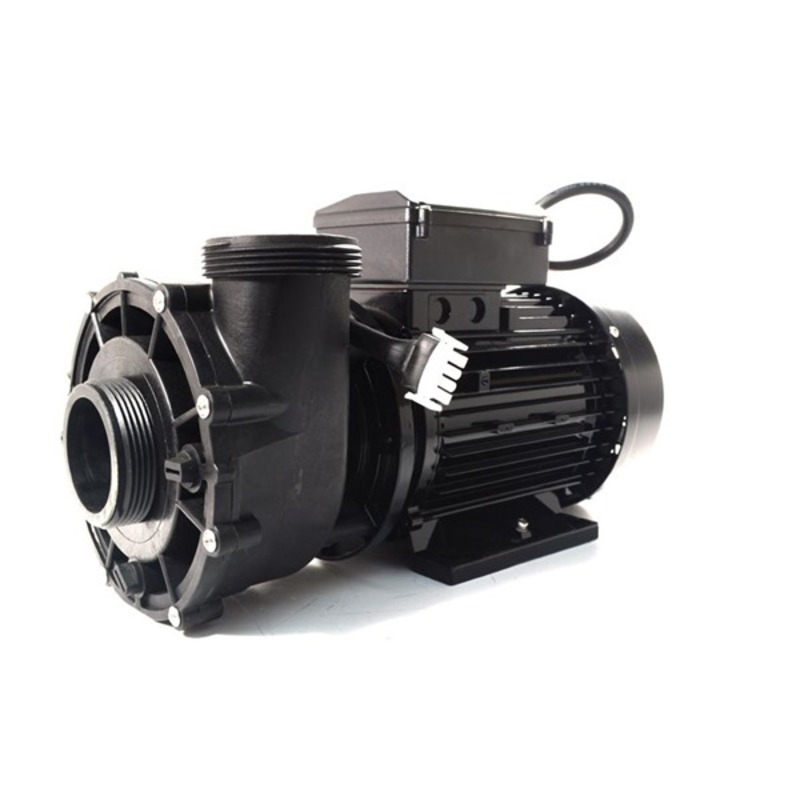

Product Details Gallery
