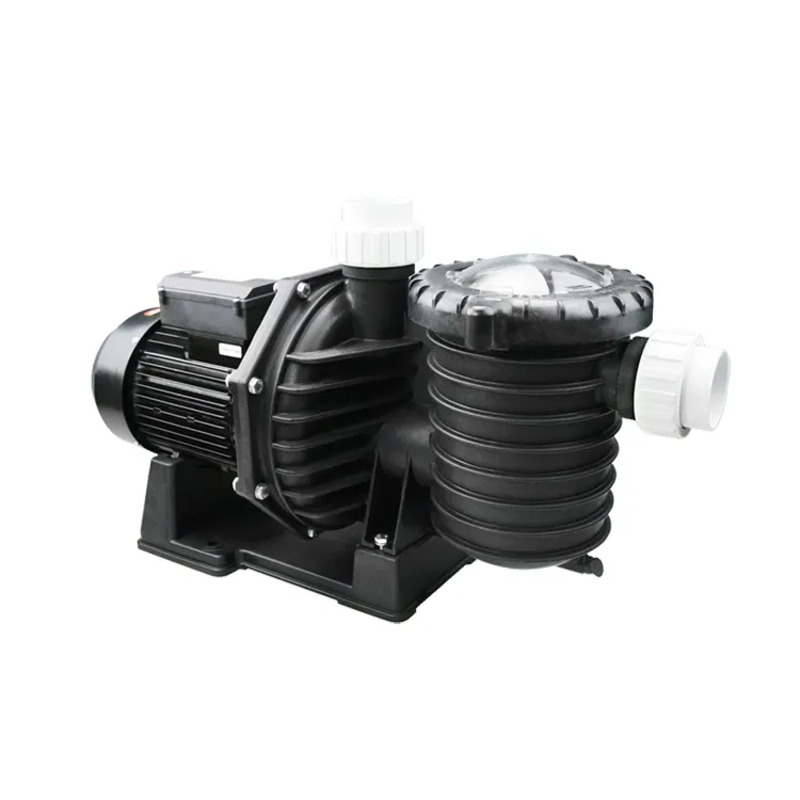

Intelligent Variable Speed Pool Pump
This pump combines user-friendly control with high-efficiency performance. Featuring an intuitive operation panel, it allows you to precisely manage circulation speed to save energy and reduce noise. Its compact design and cool-running motor ensure a long service life and easy integration into any pool system.
Applications:
-
Swimming pool circulation and filtration.
-
Spas and water features.
Key Features:
-
Intuitive Control Panel: Equipped with a clear speed display, three preset speed buttons (High/Mid/Low), a "Set" button for custom speeds, and status indicator lights for easy operation.
-
Flexible Speed Control:
-
3 Preset Speeds: Easily switch between High (2850rpm), Medium (2400rpm), and Low (1200rpm) for different needs like backwashing or daily filtration.
-
Fully Adjustable: Allows you to set any custom speed from 1000rpm to 2850rpm, giving you complete control over performance and energy consumption.
-
-
Quiet & Cool Operation: Engineered for low noise and minimal temperature rise, creating a peaceful poolside environment and extending the pump's lifespan.
-
Compact & Durable: Features a small footprint for easy installation and is built for long-term, reliable use.
| Model | Speed (r/min) | Qmax (l/min) | Hmax (m) | Curves | V/Hz | Power（P1) | Amps | Fitting Size (mm) |
|---|---|---|---|---|---|---|---|---|
| KW | ||||||||
| PM SWIM035 | 2850 | 265 | 10.5 | 6 | 220-240/50 | 0.48 | 2.1 | 48.5 or 50 |
| 2400 | 220 | 7.5 | 4 | 0.3 | 1.3 | |||
| 1200 | 95 | 2 | 1 | 0.06 | 0.5 | |||
| PM SWIM050 | 2850 | 340 | 12 | 8 | 0.65 | 2.9 | 48.5 or 50 | |
| 2400 | 275 | 8.5 | 5 | 0.42 | 1.8 | |||
| 1200 | 120 | 2.1 | 2 | 0.08 | 0.6 | |||
| PM SWIM075 | 2850 | 370 | 15 | 9 | 0.9 | 4.6 | 48.5 or 50 | |
| 2400 | 305 | 11 | 7 | 0.54 | 2.4 | |||
| 1200 | 138 | 2.6 | 3 | 0.09 | 0.7 |
