SBP35
Mariculture circulation filter
Recirculation of water in swimming pool equipment
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA
| Model | Qmax (l/min) | Hmax (m) | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| SBQ35 | 190 | 7.5 | 220-240/50 | 0.25 | 0.35 | 1.6 | 48.5 or 50 |
| SBQ50 | 220 | 9 | 220-240/50 | 0.37 | 0.5 | 2 | 48.5 or 50 |
| SBQ75 | 280 | 11 | 220-240/50 | 0.55 | 0.75 | 3.2 | 48.5 or 50 |
| SBQ100 | 310 | 14.5 | 220-240/50 | 0.75 | 1 | 3.8 | 48.5 or 50 |
| SBQ120 | 340 | 15.5 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5 or 50 |
| SBQ150 | 350 | 17.5 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5 or 50 |
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | |||||||

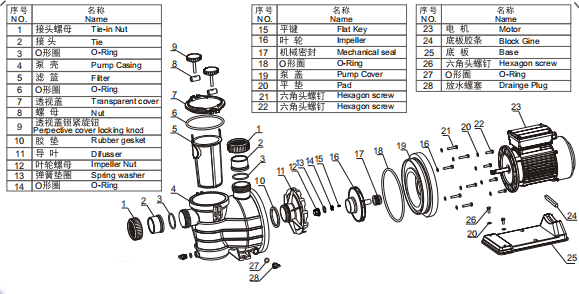

Product Details Gallery
