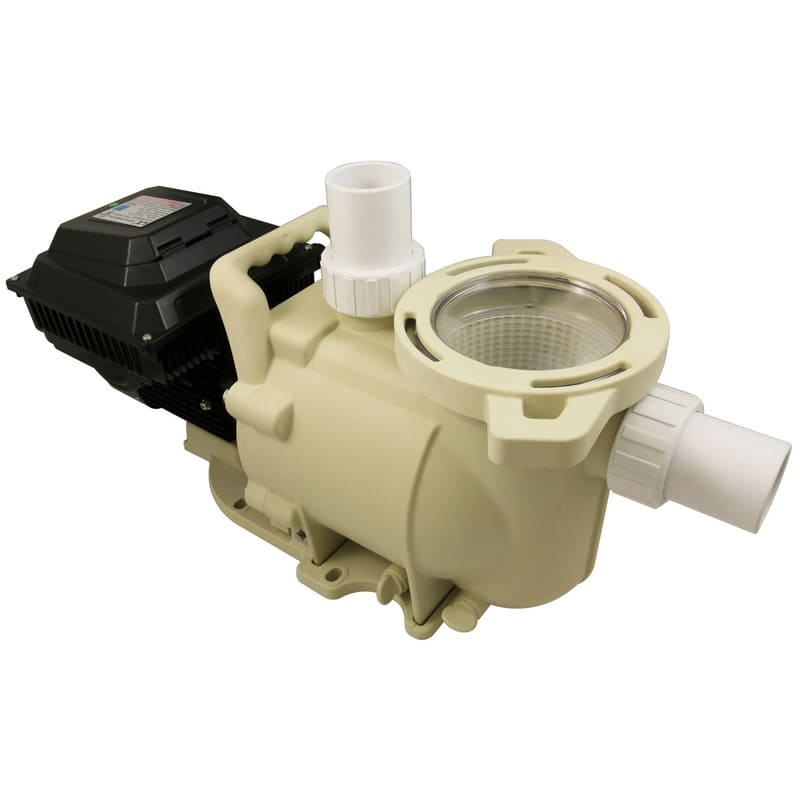

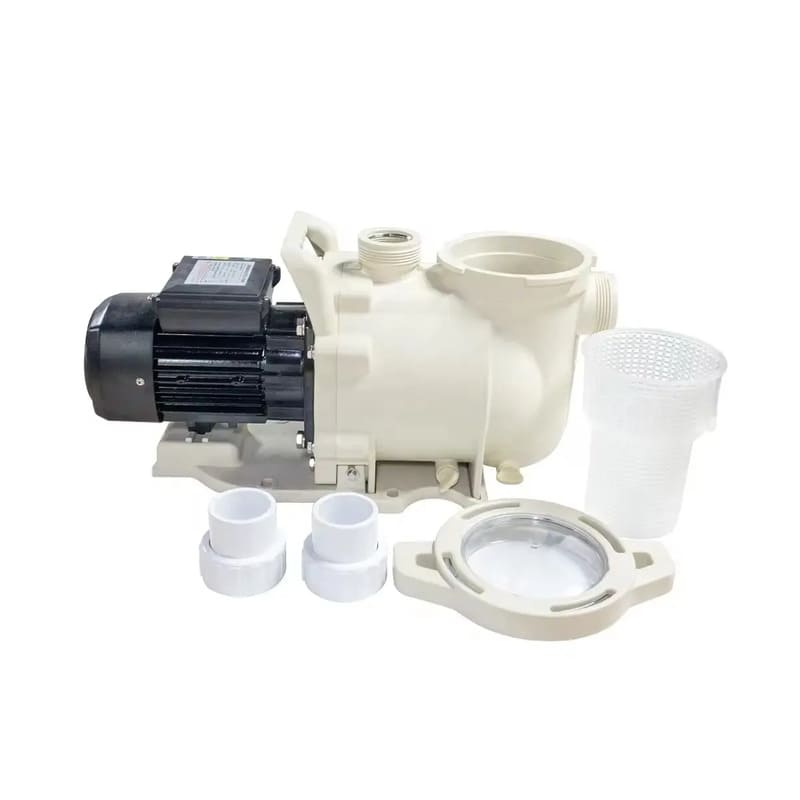

SFP075
Features
This series is completely independent development based on conventional in stallation dimension.
One-piece handle, easy to install.
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA
| Model | Qmax (l/min) | Hmax (m) | Curves | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||
| SFP075 | 300 | 11.5 | 1 | 220-240/50 | 0.55 | 0.75 | 3.2 | 48.5 or 50 |
| SFP100 | 320 | 13.5 | 2 | 220-240/50 | 0.75 | 1 | 3.8 | 48.5 or 50 |
| SFP120 | 350 | 15.5 | 3 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5 or 50 |
| SFP150 | 390 | 19 | 4 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5 or 50 |
| SFP200 | 470 | 18 | 5 | 220-240/50 | 1.5 | 2 | 7 | 48.5 or 50 |
| SFP250 | 500 | 20.5 | 6 | 220-240/50 | 1.85 | 2.5 | 8.6 | 48.5 or 50 |
| SFP300 | 530 | 22.5 | 7 | 220-240/50 | 2.2 | 3 | 10 | 48.5 or 50 |
Product Details Gallery
