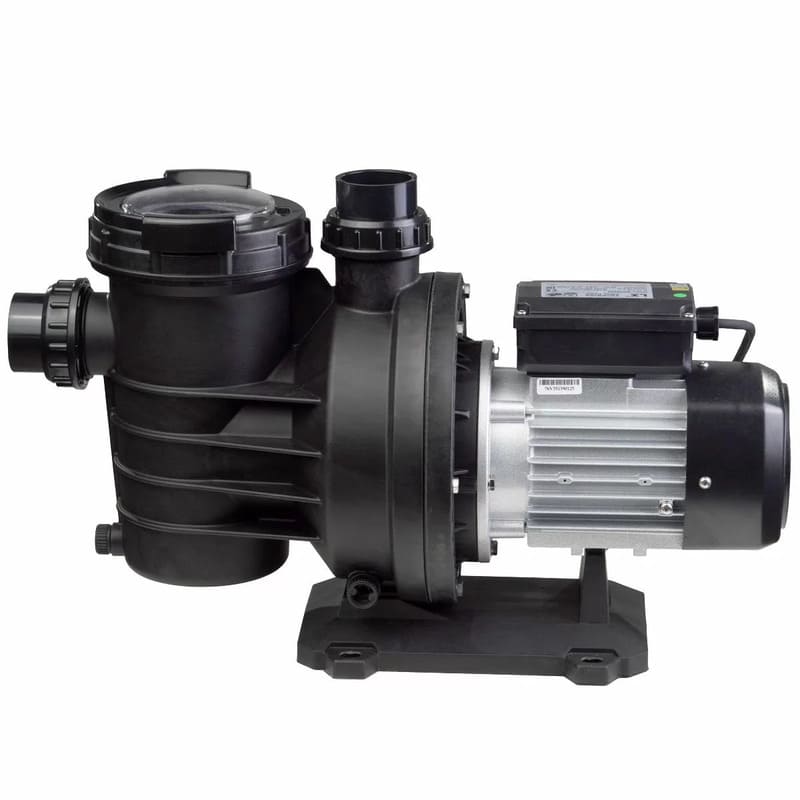

SWIM025
Mariculture circulation filter
Recirculation of water in swimming pool equipment
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA
| Model | Qmax (l/min) | Hmax (m) | Curves | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||
| SWIM025 | 195 | 7 | 1 | 220-240/50 | 0.37 | 0.5 | 1.9 | 48.5 or 50 |
| SWIM035 | 255 | 10 | 2 | 220-240/50 | 0.55 | 0.75 | 2.7 | 48.5 or 50 |
| SWIM050 | 340 | 12.5 | 3 | 220-240/50 | 0.75 | 1 | 3.8 | 48.5 or 50 |
| SWIM075 | 370 | 15 | 4 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5 or 50 |
| SWIM100 | 390 | 17.5 | 5 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5 or 50 |
| SWIM150 | 470 | 18.5 | 6 | 220-240/50 | 1.5 | 2 | 7 | 48.5 or 50 |
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | ||||||||
