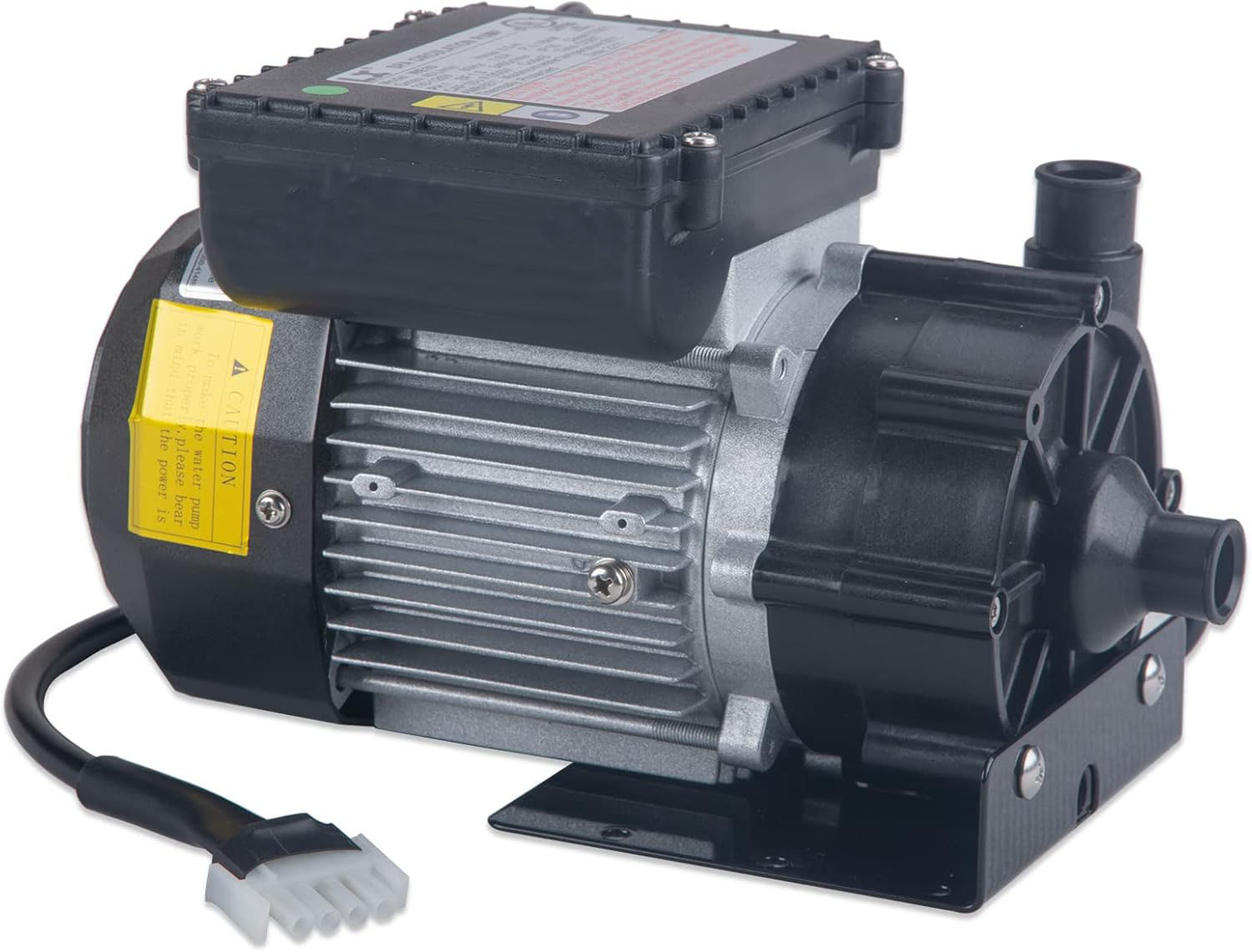

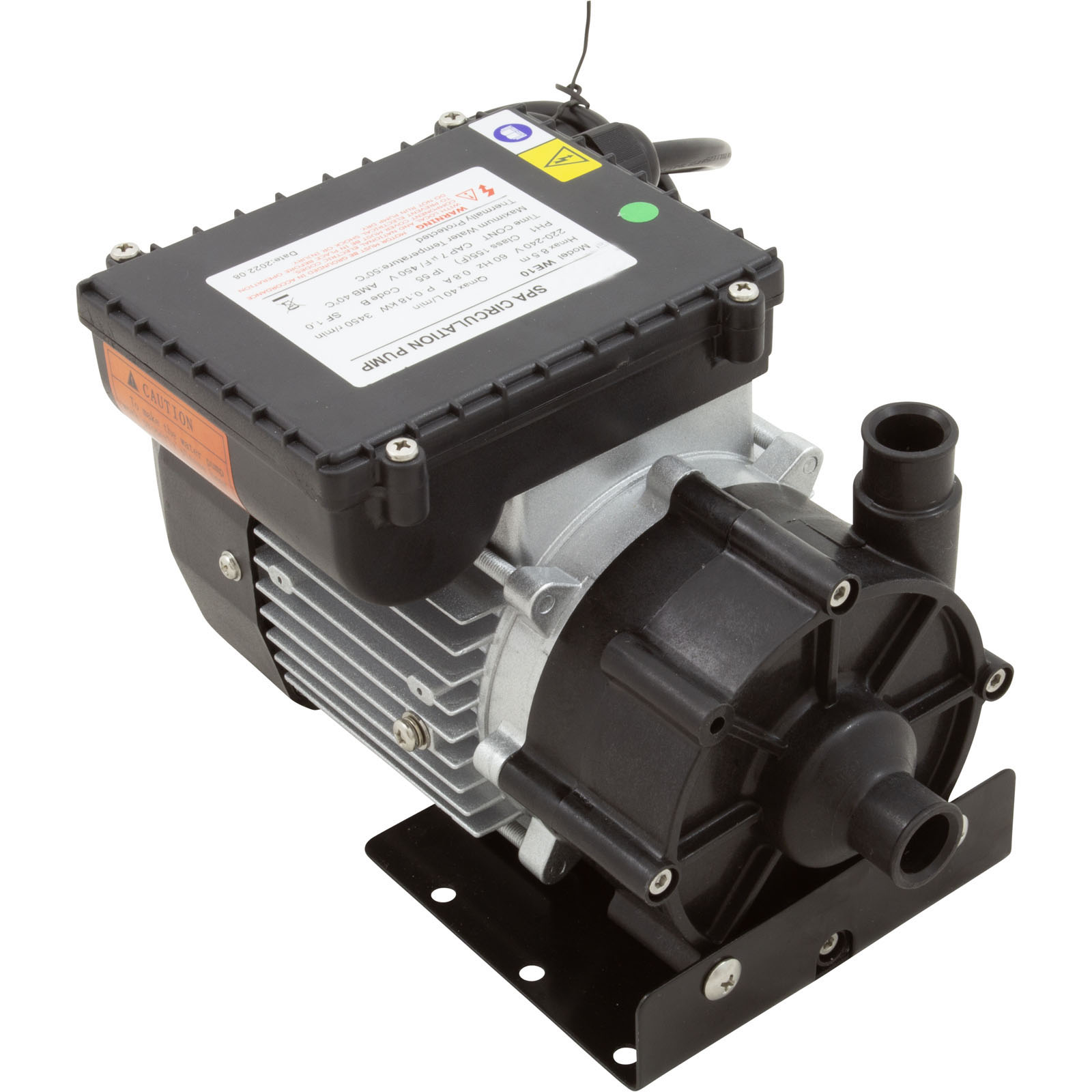

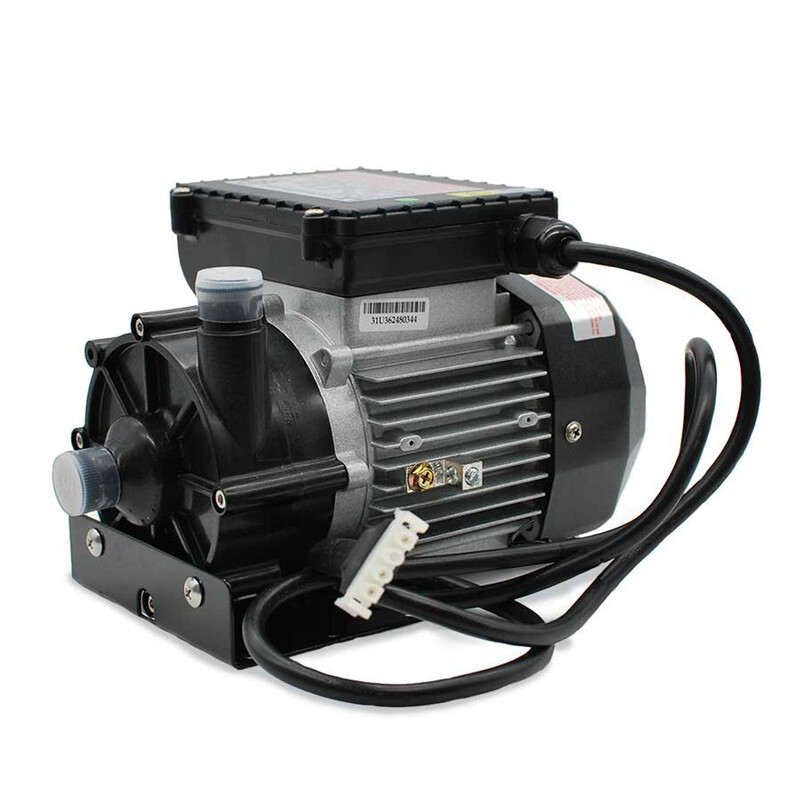

High-Performance Compact Circulation Pump
Designed for versatility and durability, this pump features high-strength engineering plastics and a premium silicon carbide mechanical seal. Its compact size makes it ideal for tight installations, while its robust construction ensures reliable performance in both sea and fresh water environments.
Applications:
-
SPA water circulation.
-
Chiller systems.
-
Ozone treatment.
-
Circulation of sea or fresh water in an aquarium.
Key Features:
-
Durable Materials: Wet ends are crafted from high-strength engineering plastics, paired with a special mechanical seal made of silicon carbide for superior wear and corrosion resistance.
-
Space-Saving Design: Compact structure and small footprint, perfect for installations where space is limited.
-

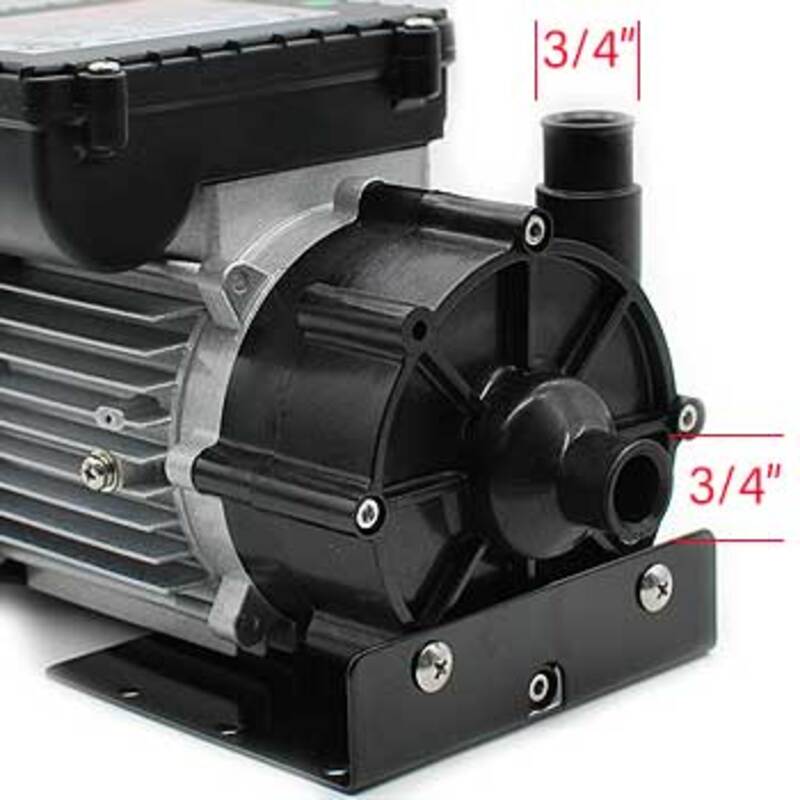

Flexible Installation: The outlet direction is adjustable, allowing for easy adaptation to various piping layouts.
-
High Performance: Engineered for low noise, high efficiency, and a long service life.
| Model | Qmax (l/min) | Hmax (m) | Power （P1)W | Amps | Speed(rpm) | ||
|---|---|---|---|---|---|---|---|
| 220-240V | 110-120V | 50Hz | 60Hz | ||||
| WE10 | 40 | 8.5 | 180 | 0.8 | 1.6 | 2900 | 3450 |
