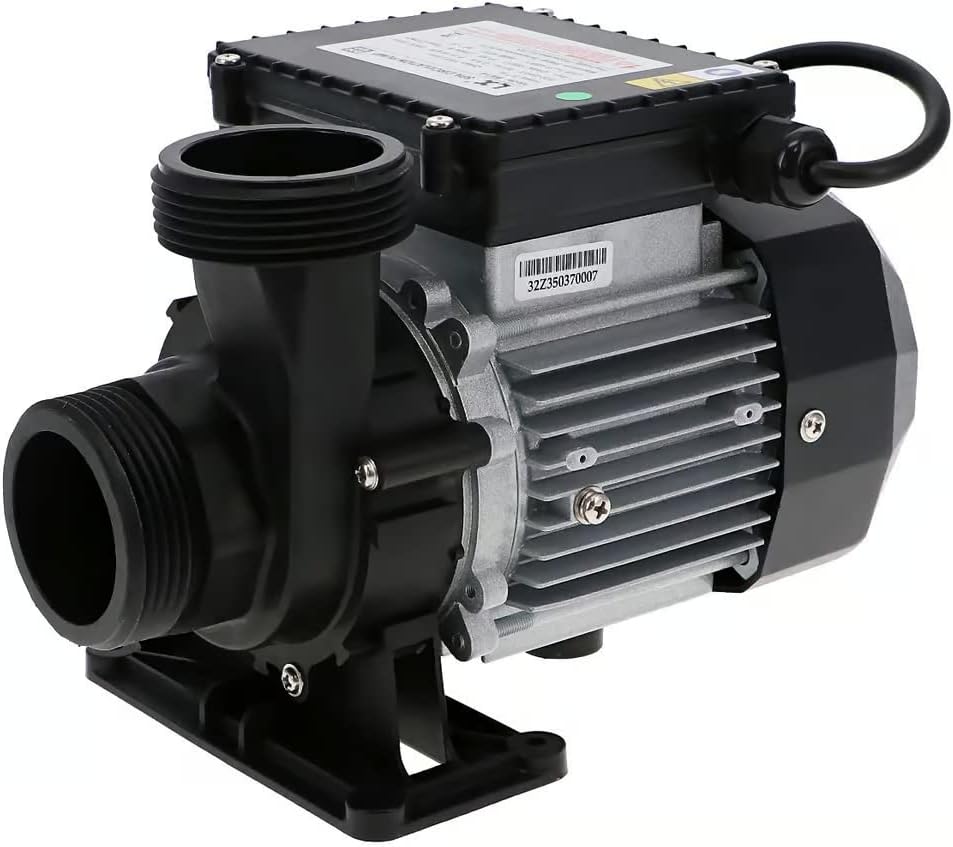

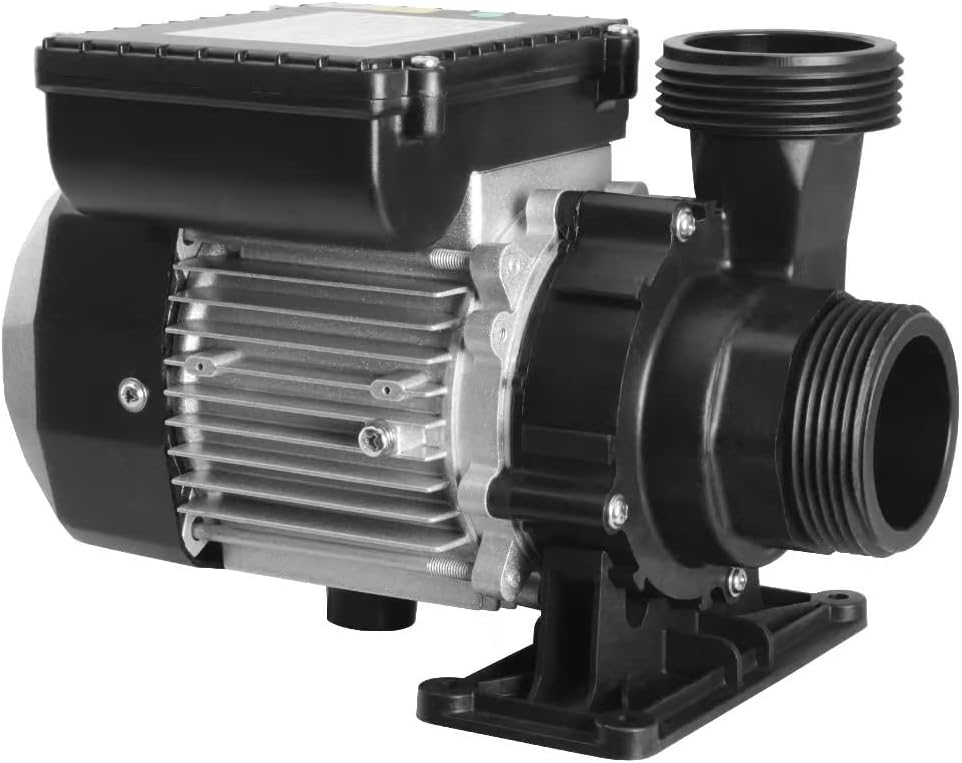

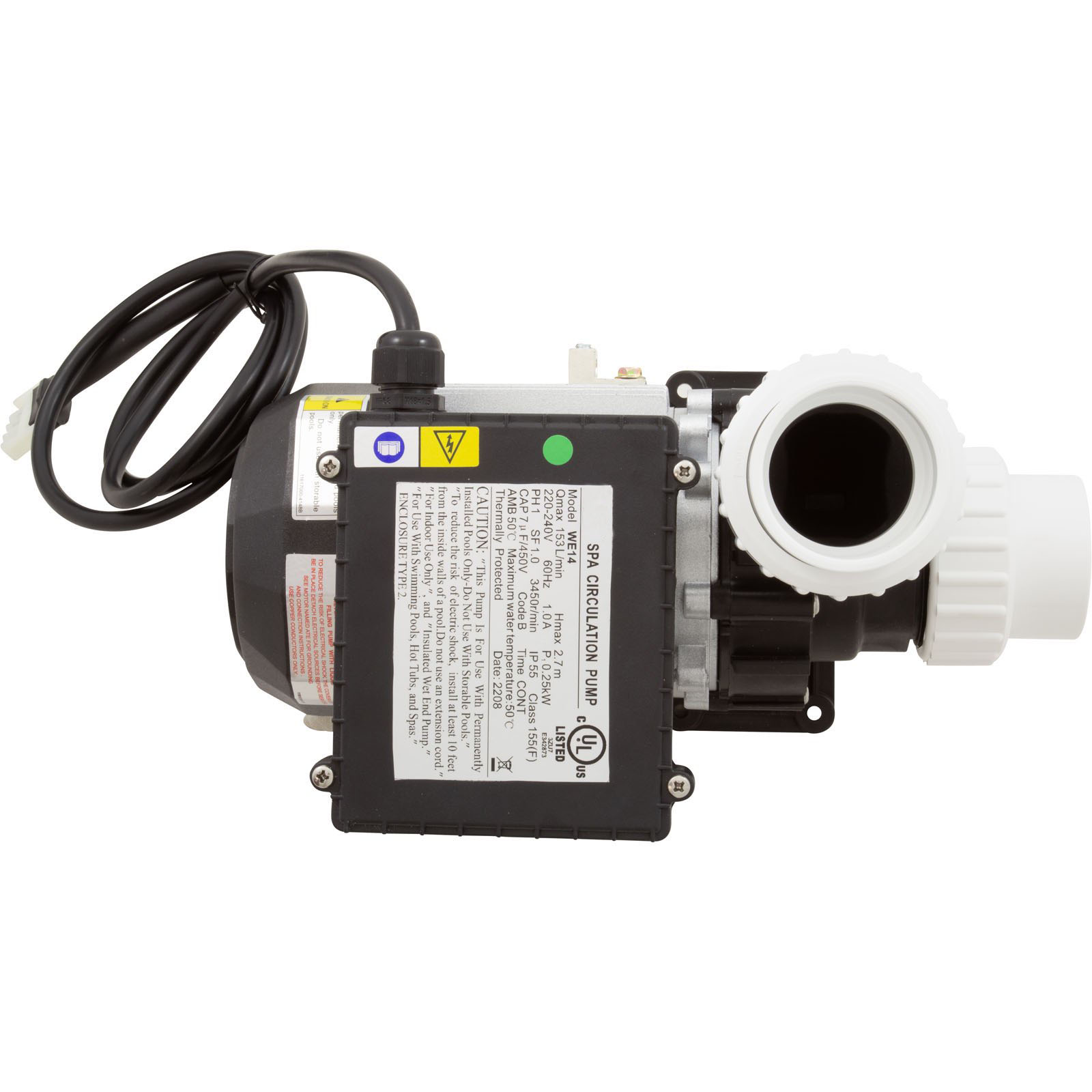

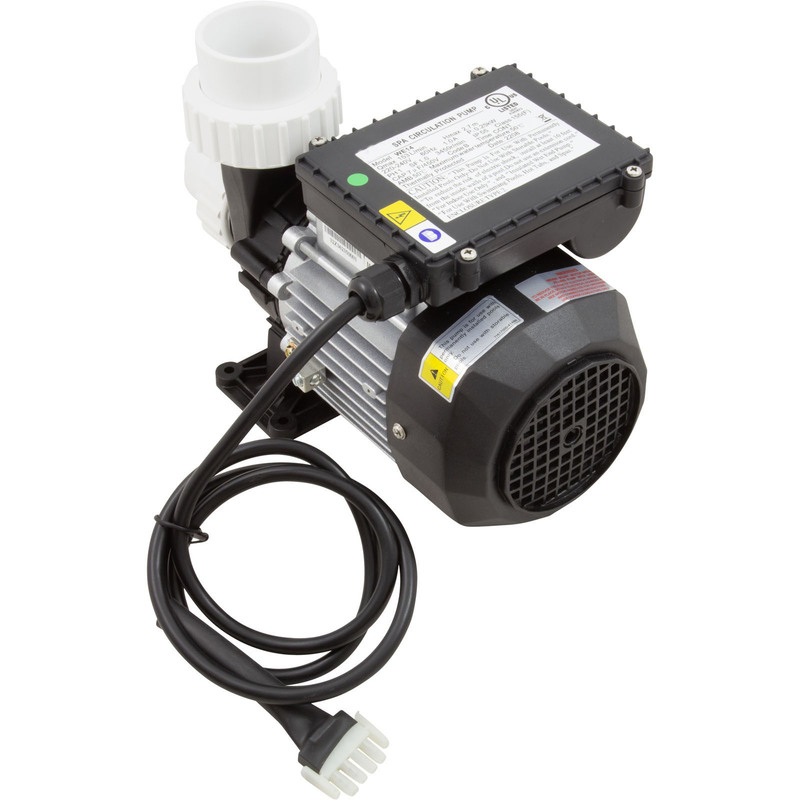

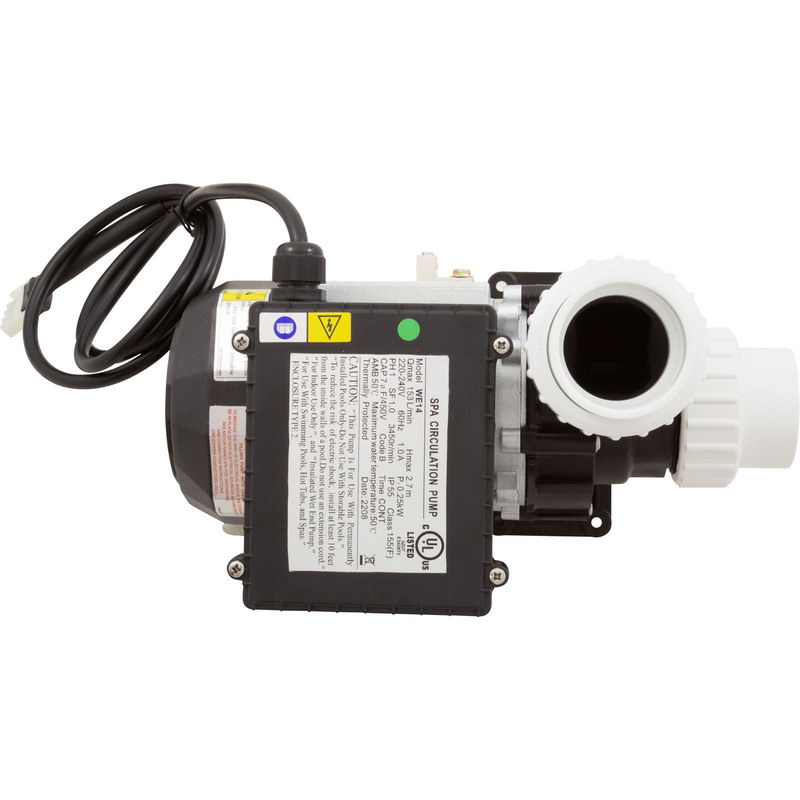

High-Performance Compact Circulation Pump
This pump is engineered for durability and versatility, featuring advanced cooling technology and high-grade materials. Its robust design ensures reliable performance across various applications, from SPA circulation to aquarium systems.
Applications:
-
SPA water circulation.
-
Chiller systems.
-
Ozone treatment.
-
Circulation of sea or fresh water in an aquarium.
Key Features:
-
Advanced Impeller Design: The impeller adopts an open structure with a specialized reflux hole design. This ensures effective cooling of the mechanical seal, significantly improving its service life.
-
Premium Materials: The wet ends are crafted from high-strength engineering plastics, paired with a special mechanical seal made of silicon carbide for superior durability.
-
Flexible Installation: The outlet direction is adjustable, allowing for easy adaptation to different piping layouts.
-
Reliable Operation: Designed for low noise, high efficiency, and long-term service.

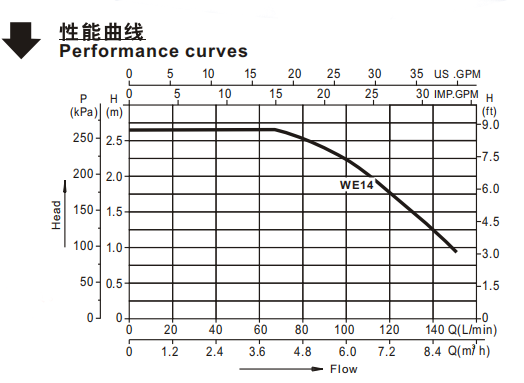

| Model | Qmax (l/min) | Hmax (m) | Power (P1)W | Amps | Speed(rpm) | ||
|---|---|---|---|---|---|---|---|
| 220-240V | 110-120V | 50Hz | 60Hz | ||||
| WE14 | 153 | 2.7 | 250 | 1 | 2 | 2900 | 3450 |
