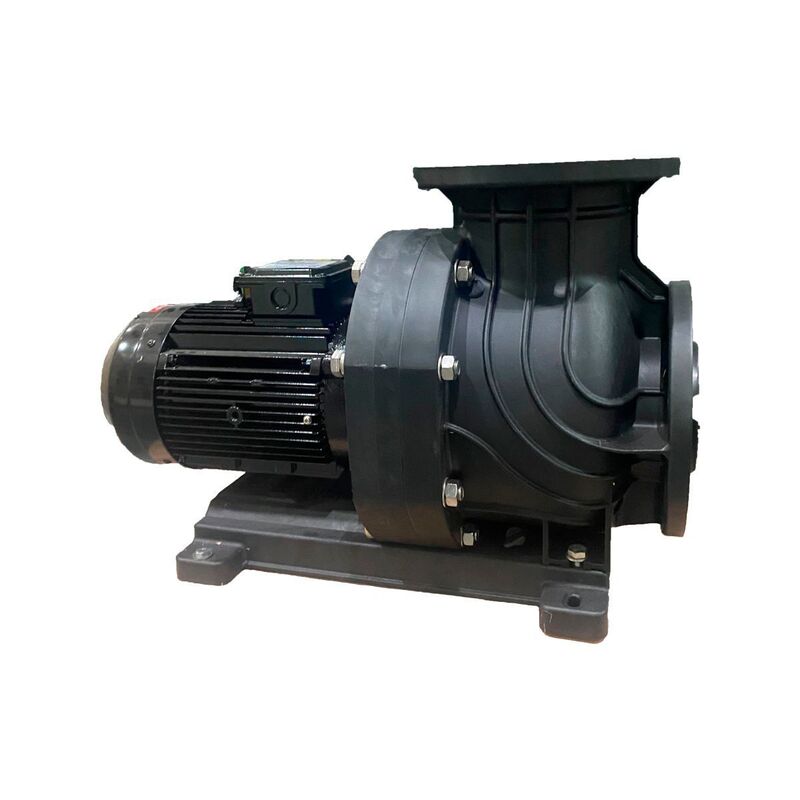

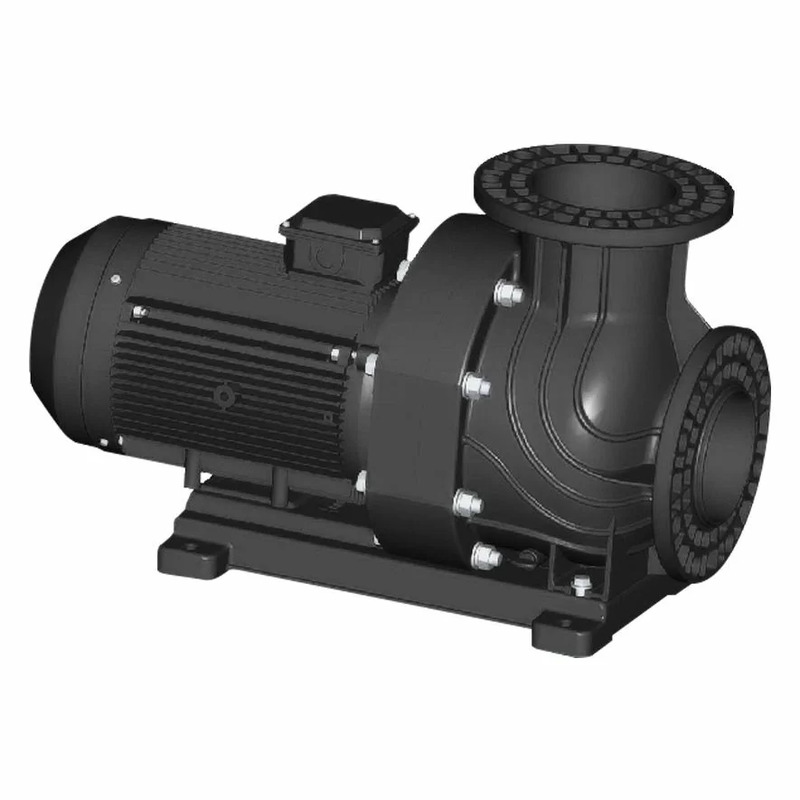

Large Flow Hot Spring & Pool Pump
A robust circulation pump designed for large water systems and high-temperature applications. It offers flexible installation options and superior durability under thermal stress.
Applications:
-
Recirculation of water in swimming pool equipment.
-
Large water worlds and aquariums.
-
Natural Hot Spring circulation (up to 75℃).
Product Highlights:
-
Large Capacity Interface: DN150 flanges (Adaptable to ANSI B16.5) support high flow rates for large commercial pools.
-
Heat Resistant: Engineered for safety and longevity in water temperatures up to 75℃.
-
Mounting Options: Standard integrated plastic base; Optional cast aluminum foot for extra stability.
| Model | V/Hz | Qmax (l/min) | Hmax (m) | Power（P1) | Amps | Inlet/outlet | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| WEQ400T | 380/50 | 1480 | 16 | 3 | 4 | 5.9 | DN150(6") |
| WEQ500T | 1680 | 17 | 4 | 5 | 6.8 | ||
| WEQ750T | 1830 | 22 | 5.5 | 7.5 | 10.3 | ||
| WEQ1000T | 2560 | 22 | 7.5 | 10 | 12.7 | ||
| WEQ1500T | 3000 | 26 | 11 | 15 | 20.1 | ||
| WEQ2000T | 3100 | 29 | 15 | 20 | 26.7 | ||
| WEQ2500T | 3300 | 31 | 18.5 | 25 | 30.3 | ||
