High-Performance Circulation Pump
Designed for continuous duty and energy efficiency, this pump delivers reliable performance for both residential and commercial water systems. Its quiet operation and robust engineering make it the ideal choice for circulation and filtration needs.
Applications:
-
Recirculation of water in Bathtub pump systems.
-
Recirculation of water in SPA equipment.
-
Mariculture circulation filter systems.
Key Features:
-
No-Water Protection: Integrated pressure switch automatically detects when there is no liquid inside the pump, activating safety protection to prevent damage.
-
Quiet Operation: Low-noise motor design for a relaxing environment.
-
High Efficiency: Excellent flow rate with low energy consumption.
-
Durability: Corrosion-resistant materials suitable for long-term use.

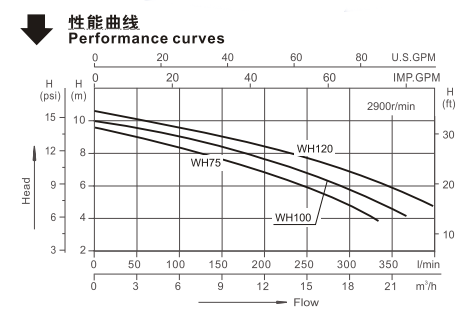

| Model | Qmax (l/min) | Hmax (m) | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| WH75 | 335 | 9.5 | 220-240/50 | 0.55 | 0.75 | 3.2 | 48.5 or 50 |
| WH100 | 365 | 10 | 220-240/50 | 0.75 | 1 | 3.8 | 48.5 or 50 |
| WH120 | 400 | 10.5 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5 or 50 |
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | |||||||
