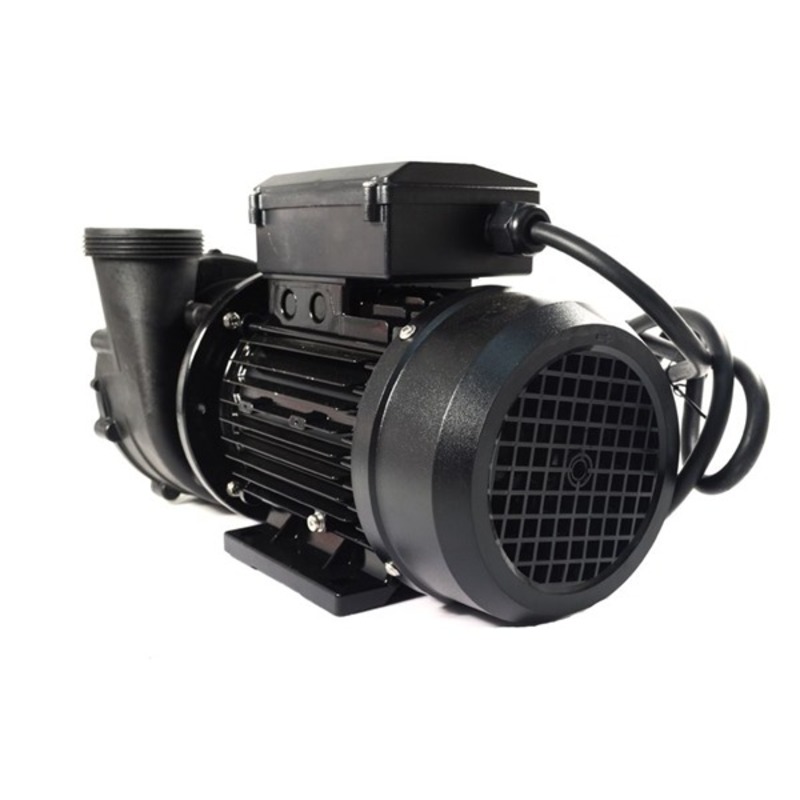

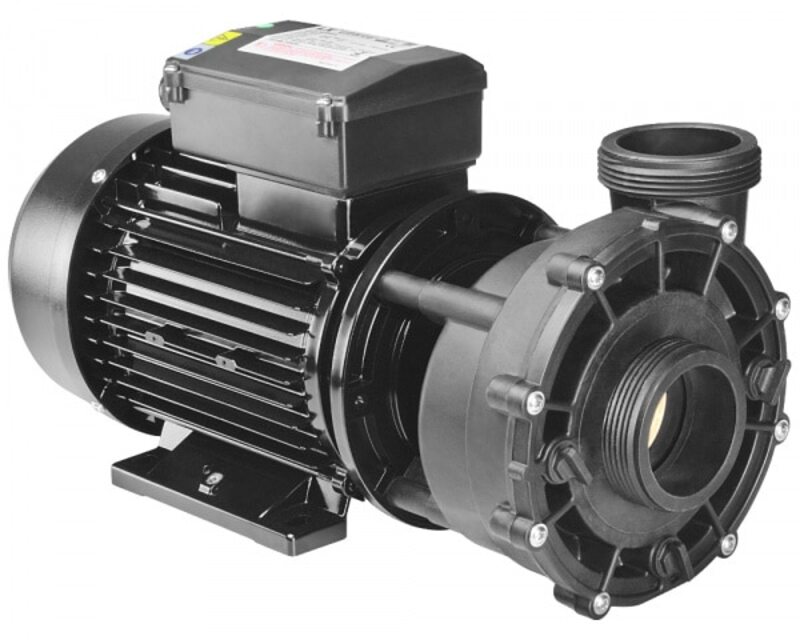

High-Performance Energy Saving Circulation Pump
Engineered for maximum efficiency, this pump is the ideal solution for modern hydro-massage systems. By utilizing low-speed operation (950 r/min), it achieves exceptional energy savings while maintaining a powerful performance. Its integrated design eliminates the need for separate circulating pumps and complex piping, simplifying your installation.
Applications:
-
Recirculation of water in Bathtub pump systems.
-
Recirculation of water in SPA equipment.
Key Features:
-
Superior Energy Saving: Operates at low speed (950 r/min) to significantly reduce power consumption and operating costs.
-
Extended Lifespan: Low-speed running reduces motor operating temperature, ensuring long-term durability.
-
Silent Operation: Minimized vibration and noise for a peaceful spa experience.
-
Simplified Installation: Efficient design means there is no need to install separate circulating pumps and associated piping.
-
Robust & Easy to Maintain: Durable structure designed for easy access and quick maintenance.
| Model | Qmax (l/min) | Hmax (m) | Curves | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||
| WP200-2/6 | 620 | 14 | 1 | 220-240/50 | (high speed)1.5 | 2 | 7 | 60.3 or 63 |
| 170 | 2 | 4 | (low speed)0.2 | 0.25 | 0.8 | |||
| WP250-2/6 | 670 | 16 | 2 | 220-240/50 | (high speed)1.85 | 2.5 | 9 | |
| 180 | 2 | 5 | (low speed)0.2 | 0.25 | 0.8 | |||
| WP300-2/6 | 730 | 18 | 3 | 220-240/50 | (high speed)2.2 | 3 | 10 | |
| 190 | 2 | 6 | (low speed)0.22 | 0.3 | 1 | |||
