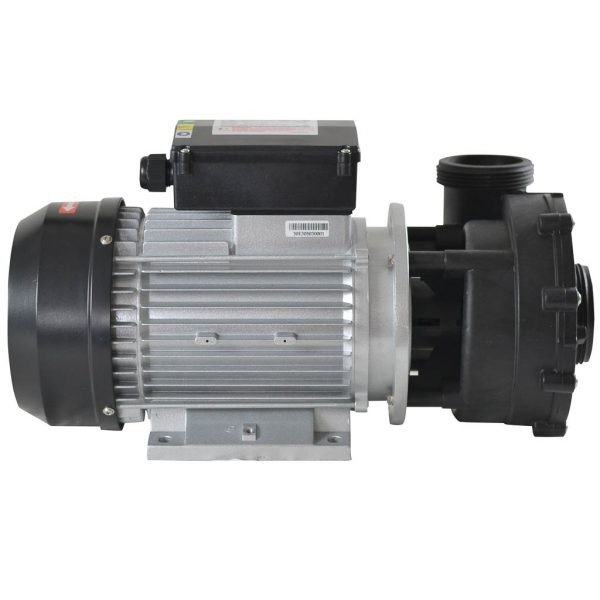

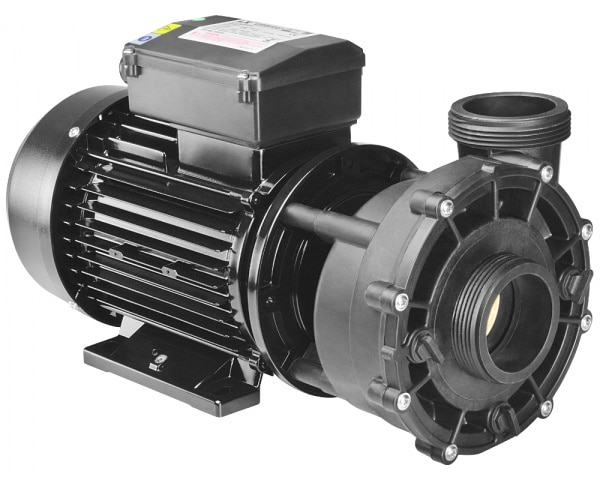

WP200-I
Mariculture circulation filter
Recirculation of water in Bathtub pump
Recirculation of water in SPA equipment
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA
| Model | Qmax (l/min) | Hmax (m) | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| WP200-I | 620 | 14 | 220-240/50 | 1.5 | 2 | 7 | 60.3 or 63 |
| WP250-I | 670 | 16 | 220-240/50 | 1.85 | 2.5 | 9 | 60.3 or 63 |
| WP300-I | 730 | 18 | 220-240/50 | 2.2 | 3 | 10 | 60.3 or 63 |
| WP400-I | 780 | 19 | 220-240/50 | 3 | 4 | 14 | 60.3 or 63 |
| WP200-II | 280 | 3.5 | 220-240/50 | (low speed)0.35 | 3/8 | 2 | 60.3 or 63 |
| 620 | 14 | (high speed)1.5 | 2 | 7 | |||
| WP250-II | 300 | 3.5 | 220-240/50 | (low speed)0.4 | 1/2 | 2.5 | 60.3 or 63 |
| 670 | 16 | (high speed)1.85 | 2.5 | 9 | |||
| WP300-II | 330 | 4 | 220-240/50 | (low speed)0.45 | 5/8 | 3 | 60.3 or 63 |
| 730 | 18 | (high speed)2.2 | 3 | 10 | |||
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | |||||||
