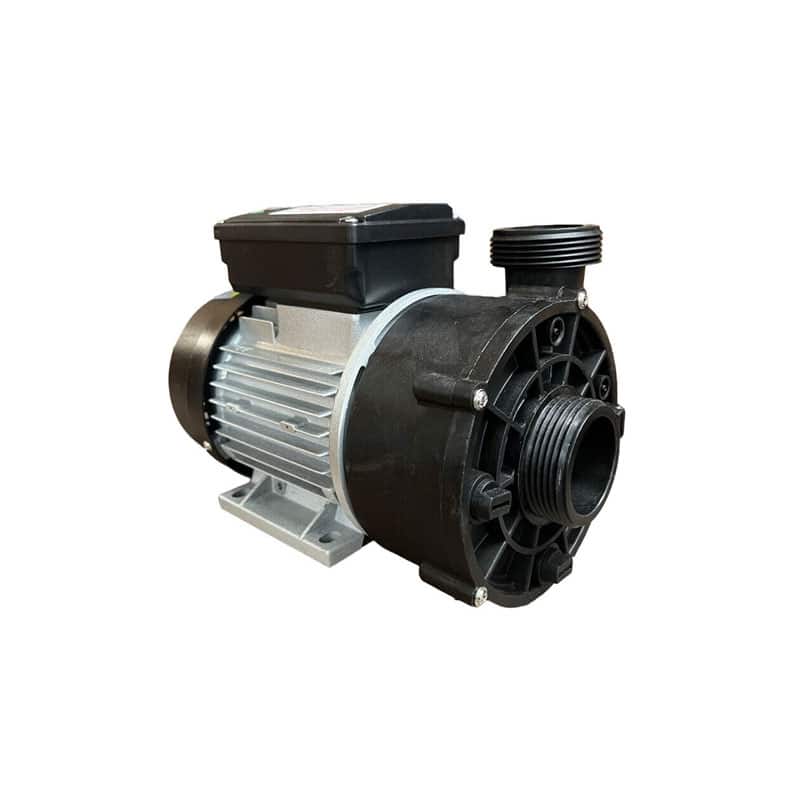

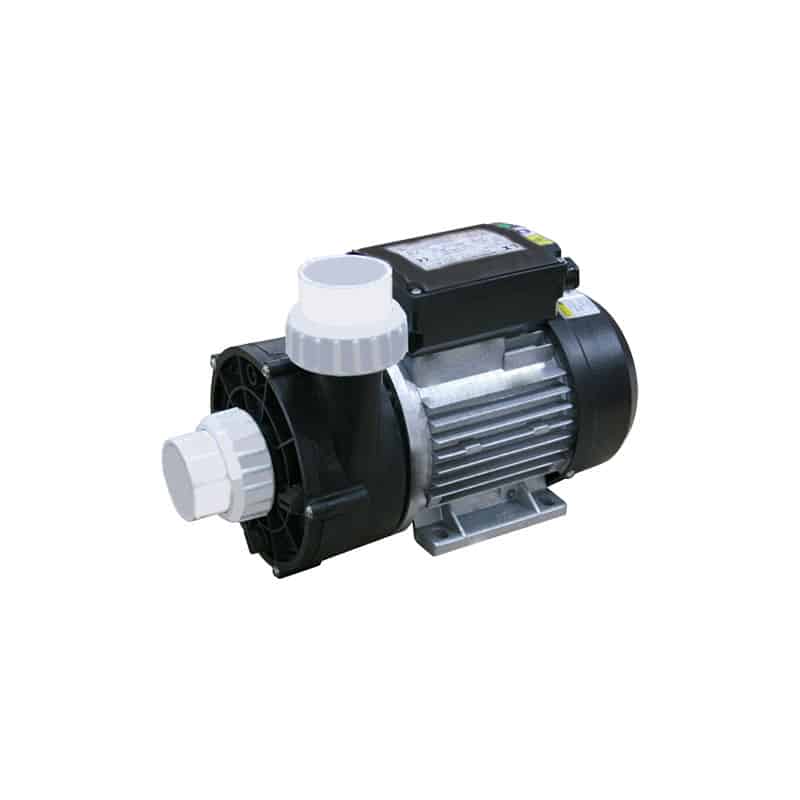

WTC100
Mariculture circulation filter
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤50
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA
| Model | Qmax (l/min) | Hmax (m) | V/Hz | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| WTC100 | 460 | 10.5 | 220-240/50 | 0.75 | 1 | 3.8 | 48.5 or 50 |
| WTC120 | 520 | 11.5 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5 or 50 |
| WTC150 | 560 | 14.5 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5 or 50 |
| WTC200 | 620 | 16 | 220-240/50 | 1.5 | 2 | 7 | 48.5 or 50 |
| PS: 230V/60Hz,110V/60Hz,110V/50Hz models are available on request | |||||||
Product Details Gallery
