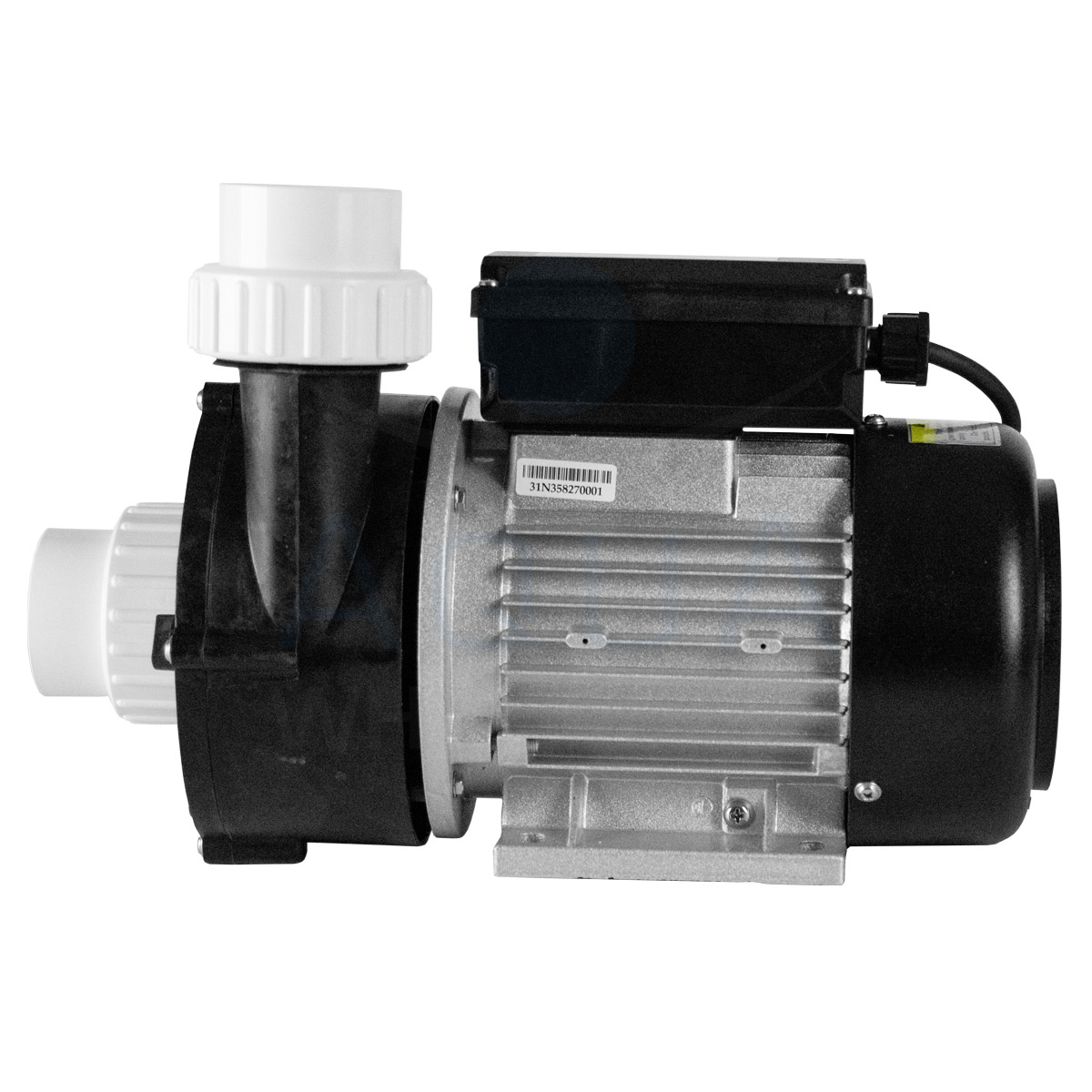

WTC10M
Mariculture circulation filter
Recirculation of water in Bathtub pump
Recirculation of water in SPA equipment
The stator adopts plastic sealing technology with good waterproof ;
-Grade E temperature rise assessment, low temperature rise, long life.
Working conditions
Medium temperature: 5-50℃
Environmental temperature: ≤ 50℃
Max.working pressure: 0.3MPa.
Insulation F
IPX5 Waterproof Standard
Thermal Protector: TI.USA

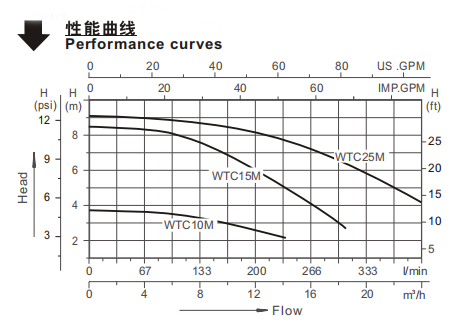

| Model | Qmax (l/min) | Hmax (m) | V/Hz | Speed (r/min) | Power（P1) | Amps | Fitting Size (mm) | |
|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||
| WTC10M | 240 | 3.8 | 220-240/50 | 1400 | 0.25 | 0.35 | 1.6 | 48.5 or 50 |
| WTC15M | 300 | 8.5 | 220-240/50 | 2900 | 0.55 | 0.75 | 3.2 | 48.5 or 50 |
| WTC25M | 400 | 9 | 220-240/50 | 2900 | 0.75 | 1 | 3.5 | 48.5 or 50 |
Product Details Gallery
